296-6182 470-7587 Final Drive Assembly Components FOR CATERPILLAR E328D

Ask Lasest Price
Brand Name :	CATERPILLAR
Model Number :	E328D E335F E336/D/D2/E/F E340D/D2
Price :	Negotiation
Payment Terms :	D/P, T/T, Western Union, MoneyGram, etc,
Supply Ability :	100 Pcs Per Month
Delivery Time :	15-20 Working Days

Add to Cart

Product Details
Company Profile

296-6182 470-7587 Final Drive Assembly Components FOR CATERPILLAR E328D

Egory:	TRAVEL COVER
Matching Brand:	CATERPILLAR
Use For:	E328D E335F E336/D/D2/E/F E340D/D2
Part No.:	296-6182
No. On Catalog	25
Place of Origin:	China
Means of Transport:	By Sea, By Air or By Express
Guarantee:	We will check the starter motor and send detail pictures to buyer to confirm before shipping.

CATALOG:

353-0562 E328D E336D E336D2 E336E E336F E340D E340D2
296-6246 E328D E336D
453-7461 E328D E335F E336D E336D2 E336E E336F E340D E340D2 E340F
470-8769 E335F E336D E336D2 E336E E336F E340D E340D2 E340F
501-7238 E335F E336D E336D2 E336E E336F E340D E340D2 E340F
507-9339 E335F E336D E336D2 E336E E336F E340D E340D2 E340F
507-9342 E335F E336D E336D2 E336E E336F E340D E340D2 E340F
518-3389 E335F E336D E336D2 E336E E336F E340D E340D2 E340F
No.	PART No.	QTY	PART NAME	SIZE	NOTE
1	7Y-0595	2	SPACER	5879.66
2	7Y-1056	1	SHIM	2923320.8	B
2	7Y-1057	1	SHIM	2923321	B
2	267-6809	1	SHIM	2923320.75	B
2	267-6810	1	SHIM	2923320.85	B
2	267-6811	1	SHIM	2923320.9	B
2	267-6812	1	SHIM	2923320.95	B
2	267-6813	1	SHIM	2923321.2	B
2	267-6814	1	SHIM	2923321.4	B
2	267-6815	1	SHIM	2923321.8	B
2	267-6816	1	SHIM	2923322	B
2	267-6817	1	SHIM	2923322.3	B
4	094-0577	1	PLATE	6247	B
4	094-0578	1	PLATE	6248	B
4	094-0579	1	PLATE	6249	B
4	094-0580	1	PLATE	62410	B
8	114-1541	6	PIN-DOWEL	24*64
9	136-2898	14	WASHER	58.3891
10	191-2690	6	WASHER	42.3701
11	227-6192	1	GEAR-COUPLING	66T 6:10H
12	255-2272	1	SEAL GP-DUO-CONE	36639419(38)
22	279-0344	2	BEARING AS-TAPERED ROLLER	29038040(30)
23	295-9234	1	SEAL-O-RING	421.84428.93.53
24	296-6181	1	HOUSING	16:30H
25	296-6182	1	COVER	16H
25	470-7587	1	COVER	16H
26	296-6183	1	CARRIER-PLANETARY	66T
27	296-6184	4	GEAR-PLANETARY	21T
28	296-6185	4	SHAFT	58*98.5
29	296-6186	3	GEAR-PLANETARY	21T
30	296-6189	1	GEAR-SUN	20T
31	296-6190	1	GEAR-SUN	20T
32	296-6192	1	SPACER	1431708
33	296-6194	1	CARRIER-PLANETARY	20T
34	296-6195	3	SHAFT	58*59
35	296-6230	3	GEAR-PLANETARY	21T
36	296-6231	1	GEAR-SUN	20T 13T
37	296-6232	1	CARRIER AS	20T
38	296-6247	11	BEARING AS-ROLLER	587827.5
39	296-6248	3	BEARING AS-ROLLER	425418
40	296-6311	1	GEAR-RING	64T 16:30H
41	353-0563	1	HOUSING-MOTOR	4:6:10H
41	227-6190	1	HOUSING-MOTOR	4:6:10H
41	452-3519	1	HOUSING-MOTOR	4:6:10H
41	452-3518	1	HOUSING-MOTOR	4:6:10H
42	093-1731	2	RING-RETAINING	M110
43	095-0891	7	PIN-SPRING	8*45
44	096-3216	2	SETSCREW-SOCKET	M12X1.75X12	M
45	096-8058	3	RING-RETAINING	M42
46	191-2645	1	COUPLING	13T
47	3E-2338	2	PLUG-PIPE
48	6V-8133	10	BOLT	M24X3X80	M
49	6V-8237	10	WASHER	26444
50	7M-8485	2	SEAL-O-RING	29.7435.642.95
51	7Y-5217	30	BOLT-SOCKET HEAD	M20X2.5X70	M
52	8T-4123	30	WASHER	22353.5
53	8T-4223	16	WASHER-HARD	13.525.53
54	8T-4956	16	BOLT	M12X1.75X35	M
	1U-8846		SEALANT-GASKET		B F
	B		USE AS REQUIRED
	F		NOT SHOWN
	M		METRIC PART

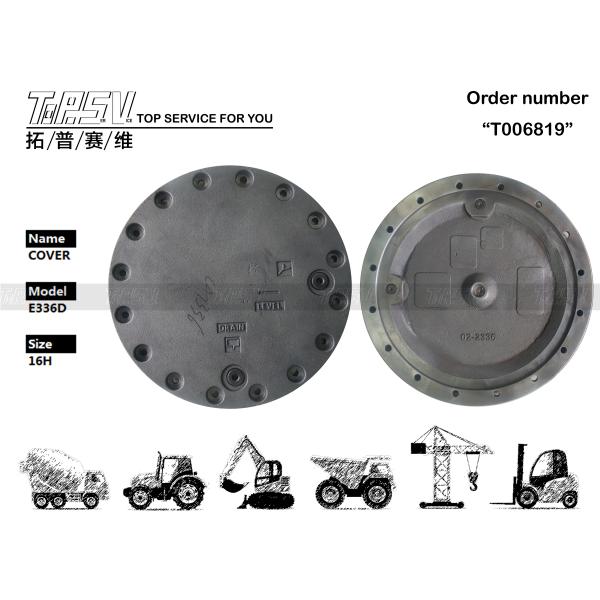

PRODUCT PHOTO:
